The Java Journey: Episode II - Attack of the Bouncing Ball
Embark on a Journey to Unleash the Power of Java Animation and Captivate Users with Engaging Interactive Experiences
Java Animation Awakens: Mastering the Art of Dynamic Motion
Welcome to the thrilling second episode of our Java saga! In this article, we will delve into the art of animating dynamic motion using Java. Just as the Force flows through all living beings, motion breathes life into our applications, making them more engaging and interactive. Join us as we unlock the secrets of creating a captivating bouncing ball animation that will add a touch of magic to your Java programs.
The Force of Animation: Understanding the Importance of Dynamic Motion
A long time ago in a galaxy far, far away, Java animation was a powerful tool used by Jedi programmers to create dynamic, interactive programs. Now, it's your turn to harness the force of animation and master the art of dynamic motion.
In this practical guide for beginners, we'll be creating a bouncing ball animation using Java. Don't worry, no need to travel to the Jedi Temple on Coruscant or learn the ways of the force. All you need is a computer and our (IDE) integrated development environment.
Lights, Camera, Action: Setting the Stage for Animation in Java
As a Jedi programmer, you must understand that animation is a powerful tool in the world of programming. Animation brings your applications to life and helps to make your software more user-friendly. Today, we will be exploring how to create a basic bouncing ball animation in Java, setting the stage for more advanced animation techniques. Let the force of animation awaken in you, and may the code be with you!
To begin, we need to set the stage for our animation. We will start by importing the necessary libraries for the program to function. This includes the javax.swing and java.awt libraries for creating graphics and handling user input, as well as the java.awt.event libraries for listening to events.
import javax.swing.*;
import java.awt.*;
import java.awt.event.KeyEvent;
import java.awt.event.KeyListener;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
Next, we will set constants and variables used throughout the program. In this case, we will define the width and height of the screen, the size and speed of the ball, and the x and y position of the ball.
public class BouncingBallAnimation extends JPanel implements KeyListener {
private static final int WIDTH = 800;
private static final int HEIGHT = 600;
private static final int BALL_SIZE = 50;
private static final int BALL_SPEED = 5;
private int ballX;
private int ballY;
private int ballXdirection;
private int ballYDirection;
private boolean isAnimating;
private static final int EASING_FACTOR = 2;
}
Unleashing the Bouncing Ball: Implementing the Animation Logic
The next step is to implement the animation logic for the bouncing ball. We'll create a new class called BouncingBallAnimation
that extends JPanel
and implements KeyListener
. In our working script, we have implemented an easing effect to make the ball's movement smoother. This is achieved by using the EASING_FACTOR
constant, which divides the BALL_SPEED
: Here's the code:
public class BouncingBallAnimation extends JPanel implements KeyListener {
private static final int WIDTH = 800;
private static final int HEIGHT = 600;
private static final int BALL_SIZE = 50;
private static final int BALL_SPEED = 5;
private int ballX;
private int ballY;
private int ballXdirection;
private int ballYDirection;
private boolean isAnimating;
private static final int EASING_FACTOR = 2;
public BouncingBallAnimation() {
ballX = WIDTH / 2 - BALL_SIZE / 2;
ballY = HEIGHT / 2 - BALL_SIZE / 2;
ballXdirection = 1;
ballYDirection = 1;
// We will be adding the MouseListener Here Later
// Start The Animation
startAnimation();
}
// Rest of the code will go here
}
private void startAnimation() {
isAnimating = true;
// Start The Game Loop In A Separate Thread
new Thread(() -> {
while (isAnimating) {
moveBall();
repaint(); // Redraw The Ball At Its New Position
try {
Thread.sleep(10); // Pause The Loop For A Short Time To Create The Animation Effect
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}).start();
}
private void stopAnimation() {
isAnimating = false;
}
private void moveBall() {
ballX += BALL_SPEED * ballXdirection / EASING_FACTOR;
ballY += BALL_SPEED * ballYDirection / EASING_FACTOR;
// Handle Collisions With The Screen Edges
if (ballX <= 0 || ballX >= WIDTH - BALL_SIZE) {
ballXdirection *= -1;
}
if (ballY <= 0 || ballY >= HEIGHT - BALL_SIZE) {
ballYDirection *= -1;
}
}
@Override
protected void paintComponent(Graphics g) {
super.paintComponent(g);
g.setColor(Color.BLUE);
g.fillOval(ballX, ballY, BALL_SIZE, BALL_SIZE);
}
@Override
public void keyTyped(KeyEvent e) {
// Not Used
}
@Override
public void keyPressed(KeyEvent e) {
if (e.getKeyCode() == KeyEvent.VK_SPACE) {
if (isAnimating) {
stopAnimation();
} else {
startAnimation();
}
}
}
@Override
public void keyReleased(KeyEvent e) {
// Not Used
}
By implementing this easing effect into our BouncingBall, we can simulate realistic acceleration and deceleration, giving the ball's movement a natural flow. With this addition, our animation logic is complete, and we can move on to user input and control.
Harnessing the Power of Interactivity: User Input and Control
To truly engage users and make our bouncing ball animation interactive, we'll empower them with the ability to control the ball's behavior. By implementing MouseListener and KeyListener interfaces, we can capture user interactions through mouse clicks and keyboard events. Users will become the masters of our Java universe, controlling the ball's direction, pausing, and resuming the animation at will.
Our program needs to listen to user input in order to start and stop the animation. We will add a mouse listener to handle mouse clicks, as well as a key listener to handle key presses. The program is set to be focusable to receive keyboard input.
public BouncingBallAnimation() {
ballX = WIDTH / 2 - BALL_SIZE / 2;
ballY = HEIGHT / 2 - BALL_SIZE / 2;
ballXdirection = 1;
ballYDirection = 1;
// We are adding the below section
addMouseListener(new MouseAdapter() {
@Override
public void mouseClicked(MouseEvent e) {
ballXdirection *= -1;
ballYDirection *= -1;
}
});
addKeyListener(this);
setFocusable(true);
// We are adding the above section
// Start The Animation
startAnimation();
}
In our working script, we have implemented both the MouseListener
and KeyListener
interfaces to give users control over the bouncing ball animation. When the mouse is clicked, the ball changes its direction. When the spacebar is pressed, the animation is either paused or resumed, depending on its current state. The keyPressed
method handles this functionality.
The Grand Finale: Launching the Bouncing Ball Animation
Finally Padawan, after aligning your working script with the article, we have now reached the grand finale. The following code snippet demonstrates how to launch the bouncing ball animation and ties together everything in our script:
public static void main(String[] args) {
SwingUtilities.invokeLater(() -> {
JFrame frame = new JFrame("Bouncing Ball Animation");
BouncingBallAnimation animation = new BouncingBallAnimation();
frame.add(animation);
frame.setSize(WIDTH, HEIGHT);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setVisible(true);
});
}

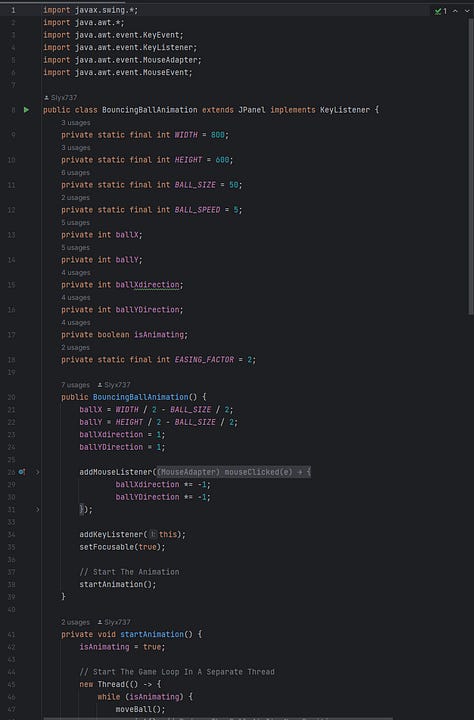

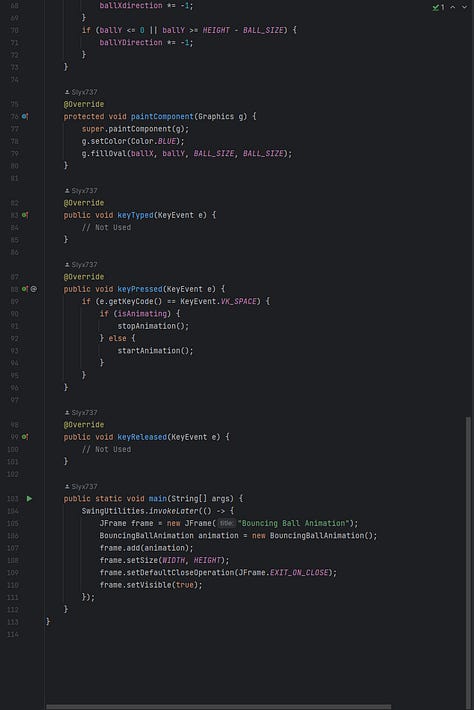

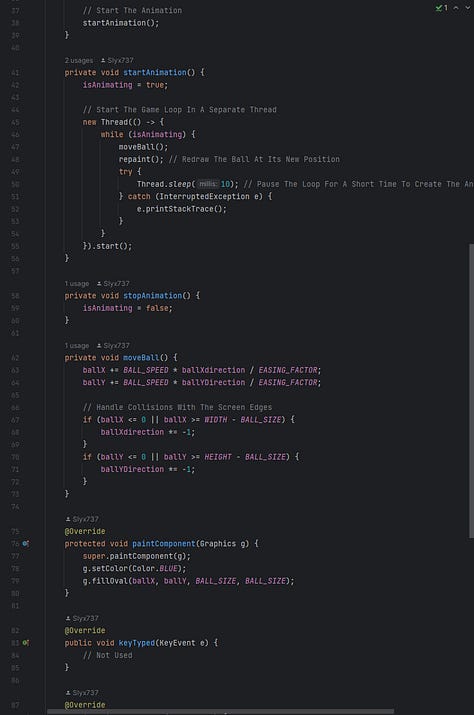

Padawan, your script, top to bottom should read as follows:
Once the script for your bouncing ball has been written to your Holoterminal, you should save your project by clicking Menu>File>Save All. Afterward, it’s time to build and test your coding skills of animation, may the code force be with you!
Embracing the Power of GitHub: Version Control and Project Sharing for Jedi Coders
As our Java journey continues, it's essential to not only master the art of animation but also wield the power of version control and project sharing. By utilizing GitHub, our new Jedi Coders can easily host their projects, showcase their work to friends, family, and potential employers, and collaborate with fellow developers on their path to mastery.
Embarking on the GitHub Adventure: Signing Up and Downloading the Mobile App
To begin harnessing the power of GitHub, our Jedi Coders must first sign up for an account. Visit the GitHub website and follow the registration process to join the ranks of Master developers around the galaxy!
To stay connected with your projects and collaborate on the go, download the GitHub mobile app on your device. The Force is ever strong with these links:
Connecting the Stars: Pushing Your Project to a Repository with IntelliJ
Now that our Jedi Coders are equipped with GitHub accounts and mobile apps, it's time to connect the stars by pushing your Java animation project to a repository. With the newest IntelliJ interface, this process is streamlined and accessible even to Padawans.
To accomplish this, follow these simple steps:
1. Connect your GitHub account to IntelliJ. Access the settings by clicking `File` > `Settings` > `Version Control` > `GitHub`. Enter your GitHub credentials and click `Apply` to establish the connection.
2. Create a new GitHub repository. Click on the top-left drop-down menu in IntelliJ and select `GitHub`. Choose `Create Repository` and enter a name for your new repository. Click `Create` to proceed.
3. Push your project to the repository. With your GitHub repository created, click on the top-left drop-down menu again, select `GitHub`, and choose `Push`. IntelliJ will automatically prepare your project for uploading, and with a final click on the `Push` button, your Java animation project will be hosted on GitHub for all to see.
Conquering the GitHub Galaxy: Simple Version Control and Project Sharing
By embracing GitHub's power, you as Jedi Coders, now have the ability to use version control in a simple yet effective way, ensuring the longevity and growth of your Java projects. This newfound knowledge enables collaboration, enhances skill development, and showcases the true potential of your Code Mastery in the vast and captivating realm of Java animations.
May the Force guide you on your path to mastery as you continue to explore the boundless galaxy of Java animation and GitHub collaboration!
